BEST EVER DESIGN

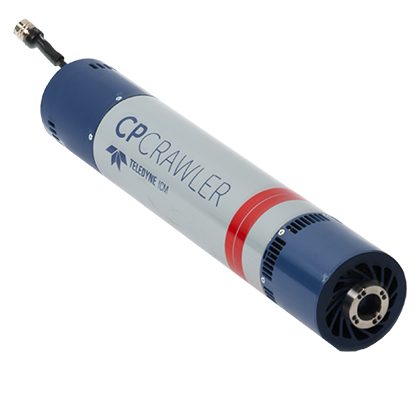

Designed to fit into 6” pipelines and higher, the CP160CR constant potential X-Ray generator for crawlers is – in its category – the most powerful panoramic X-Ray tube head in the world for crawlers. The generator is making the cutting edge constant potential technology of the CPSERIES even more compact into a 9.9 kg – 120 mm diameter X-Ray tube head. The crawler unit is capable of penetrating up to 28 mm of steel in 10 minutes, which corresponds to just a 25 second exposure time for 6” standard pipeline welds.
Product information
| Unit | Value | |
|---|---|---|
| Radiation geometry | - | Panoramic |
| Output voltage range | kV | 40 to 160 |
| Tube current range | mA | 0.5 to 2.0 |
| Tube current at full output | mA | 2.0 |
| Max. power at the anode | W | 320 |
| Constant power mode | - | Yes |
| Working cycle at 30°C | % | 100 |
| Steel penetration (**) | mm | 28 |
| Weight | Kg | 9.9 |
| Overall dimensions | mm | Ø 120 x 688 |
| Leakage dose at 1 m at full output | mS/h | < 2.0 |
| Optical focal spot (EN12543) | mm | Ø 4 x 0.5 |
| Max. useful angle | ° | 360 x (2x20) |
| Inherent filtration | mm | Equiv. 3.5 (Al) |
| Waterproof level | - | IP65 |
| Operating temperature | °C | -30 to +60 |
| Storage temperature | °C | -40 to +70 |
| Built-in carrousel featuring 5 outputs | - | No |
| Guard rings | - | No |
| (**) 18" pipe, 10 min, AA400, D=2 | - | - |
