IDEAL FOR DIGITAL RADIOGRAPHY
The small focal spot (1 mm) of the CP200DS generator minimizes un-sharpness and gives clearer images, which makes it ideal for digital radiography (DR) when close X-ray shots are possible.
Our CP200DS is a light and powerful generator (200 kV) with a metal-ceramic tube which turns it to be the best power-to-weight ratio in the world.
Its 100% duty cycle combined to its built-in multiple X-Ray outputs carousel make the CP200DS one of the most versatile generators on the market that will adapt to a very wide variety of NDT applications.
Its 100% duty cycle combined to its built-in multiple X-Ray outputs carousel make the CP200DS one of the most versatile generators on the market that will adapt to a very wide variety of NDT applications.
The CP200DS, like the rest of the CPSeries product range, operates with the plug-and-play POWERBOX control unit.
Product information
| Unit | Value | |
|---|---|---|
| Radiation geometry | - | Directional |
| Output voltage range | kV | 10 to 200 |
| Tube current range | mA | 0.5 to 10 |
| Tube current at full output | mA | 3.7 |
| Max. power at the anode | W | 750 |
| Constant power mode | - | Yes |
| Working cycle at 30°C | % | 100 |
| Steel penetration | mm / in | 40 / 1.57 |
| Weight | Kg / lbs | 15.9 / 35.05 |
| Overall dimensions | mm/in | Ø 140 x 705 / 5.51 x 27.75 |
| Leakage dose at 1 m at full output | mSv/h | < 2.0 |
| Optical focal spot (EN12543) | mm | 1 |

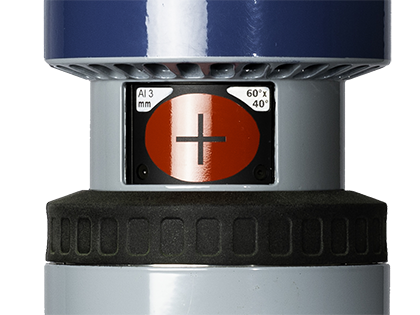

| Max. useful angle | ° | 60 x 40 elliptical |
| Inherent filtration | mm Be | 0.8 (Be Window) |
| Waterproof level | - | IP65 |
| Operating temperature | °C | -30 to +60 |
| Storage temperature | °C | -40 to +70 |

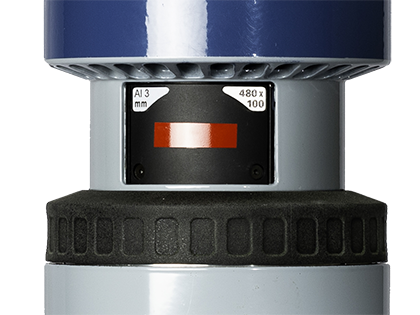

| Built-in carrousel featuring 5 outputs | - | Yes |
| Guard rings | - | 2 |
